Model inquiry page
SG.ZR011
Prepare an RFQ or document request for SG.ZR011. Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | Thermostats & Hygrostats |
|---|---|
| Product type | thermostat |
| Voltage | To confirm |
| Frequency | To confirm |
| Power | max switching capacity 25A AC; 10A visible |
| Current | To confirm |
| Airflow | To confirm |
| Static pressure | To confirm |
| Noise | To confirm |
| Speed | To confirm |
| IP rating | IP20 / class II |

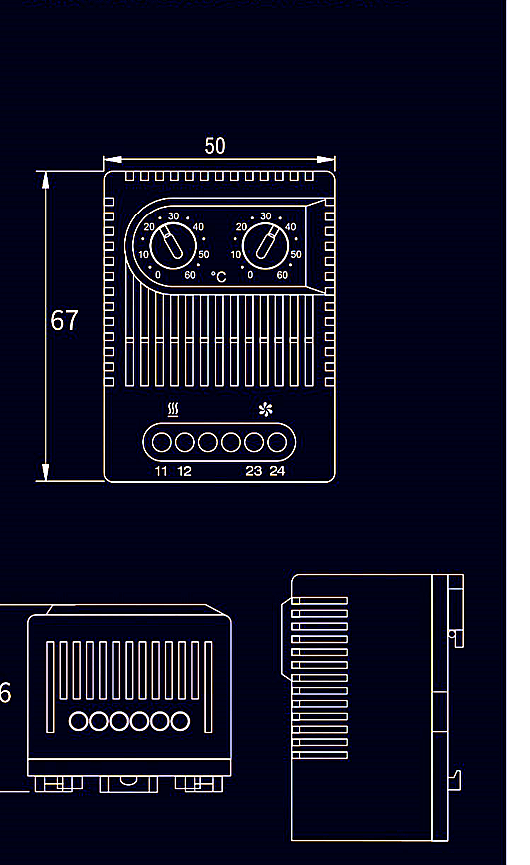

| Dimensions | 67x50x46mm |
| Cutout size | To confirm |
| Mounting | clip for 35mm DIN rail, EN 60715 |

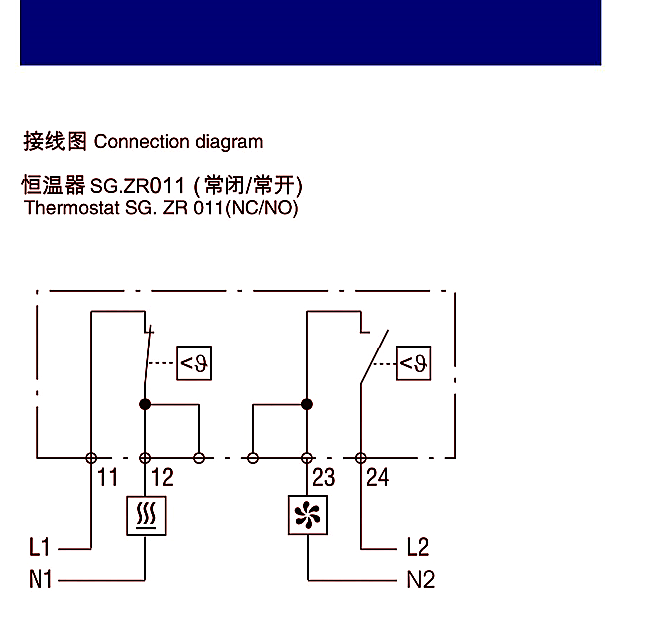

| Wiring | 4-pole terminal; max clamping torque 0.5Nm; rigid wire 2.5mm2; stranded wire with wire end ferrule 1.5mm2; terminals 11/12 for NC heater side and 23/24 for NO fan/cooling side |
| Source | page 121 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
