Model inquiry page
SG.EFR012
Prepare an RFQ or document request for SG.EFR012. Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | Thermostats & Hygrostats |
|---|---|

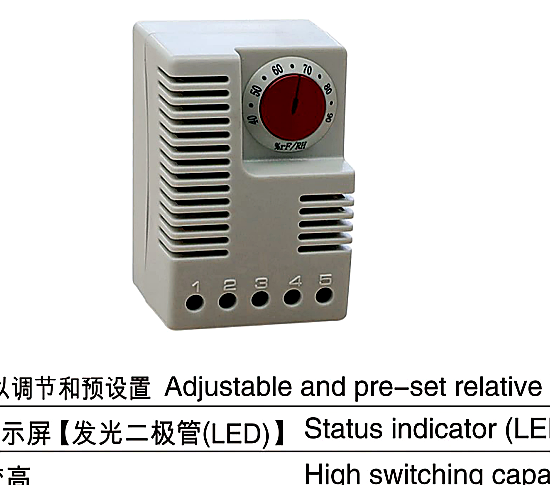

| Product type | hygrostat |
| Voltage | 240V AC / 120V AC / 24V DC relay-output rows visible |
| Frequency | To confirm |
| Power | relay output: 240V AC 8(1.6)A; 120V AC 8(1.6)A; 24V DC 4A; AC/DC 100W at 24V DC line visible |
| Current | To confirm |
| Airflow | To confirm |
| Static pressure | To confirm |
| Noise | To confirm |
| Speed | To confirm |
| IP rating | IP20 |
| Dimensions | 64.5x42x38mm |
| Cutout size | To confirm |
| Mounting | clip for 35mm DIN rail, EN 60715; vertical fitting position |

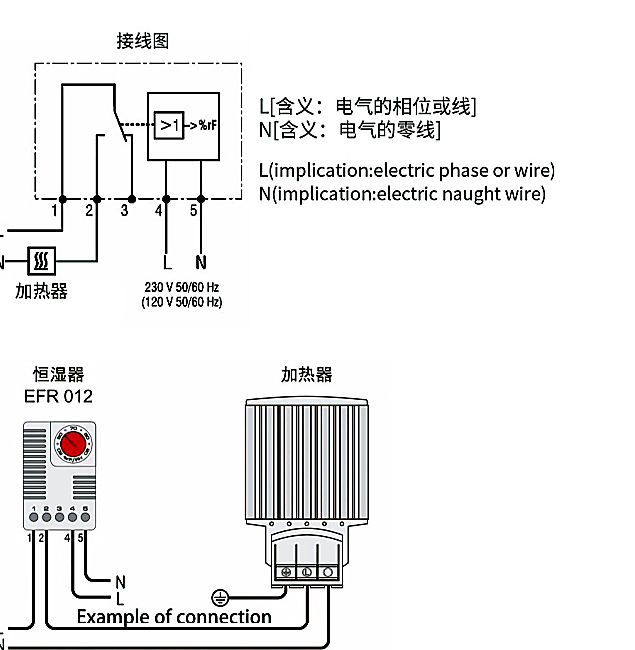

| Wiring | 5-pole terminal; max clamping torque 0.5Nm; rigid wire 2.5mm2; stranded wire with wire end ferrule 1.5mm2 |
| Source | page 127 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
