Model inquiry page
SG.CR018
Prepare an RFQ or document request for SG.CR018. Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields

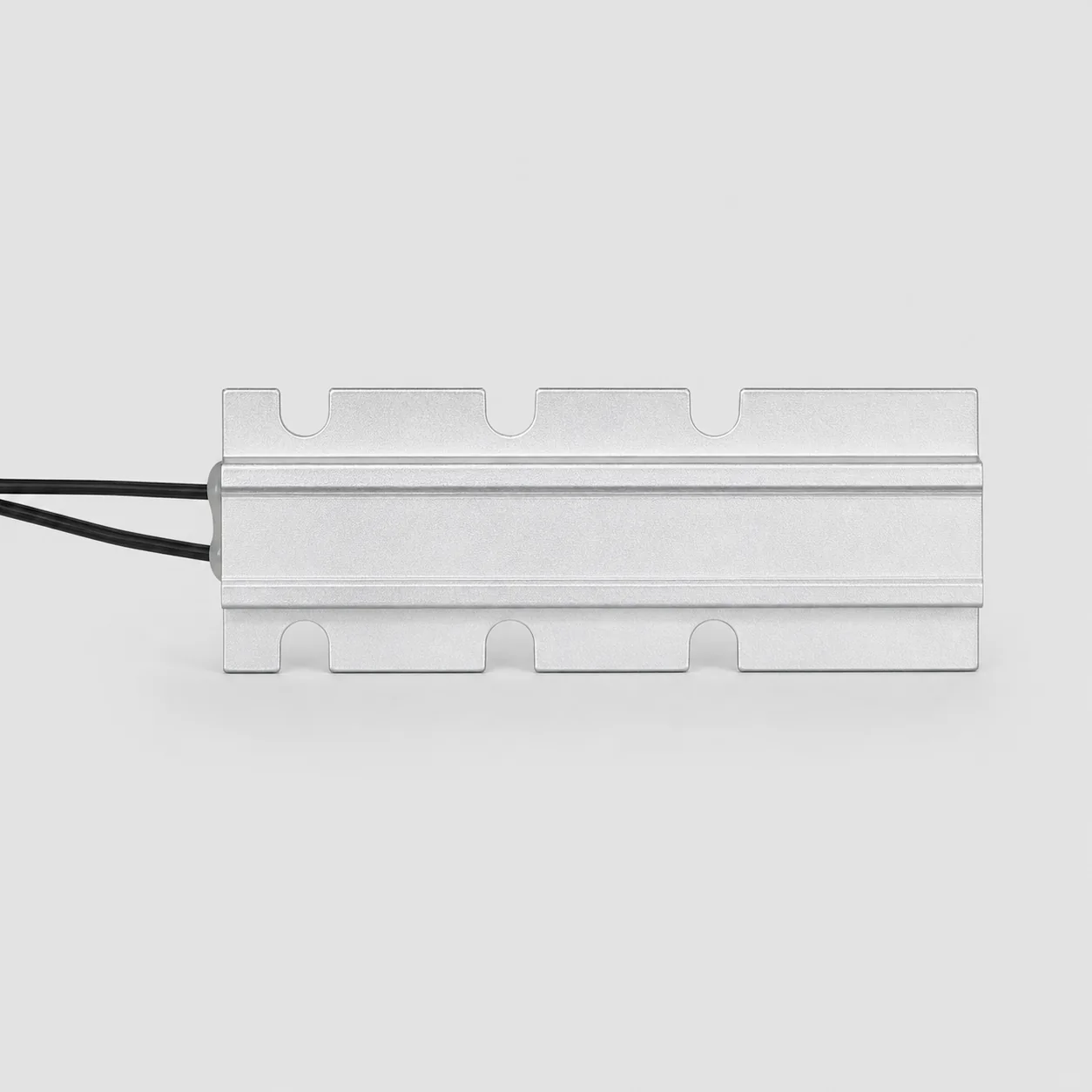

| Product family | Cabinet Heaters |
|---|---|
| Product type | heater |
| Voltage | 120-240V AC |
| Frequency | To confirm |

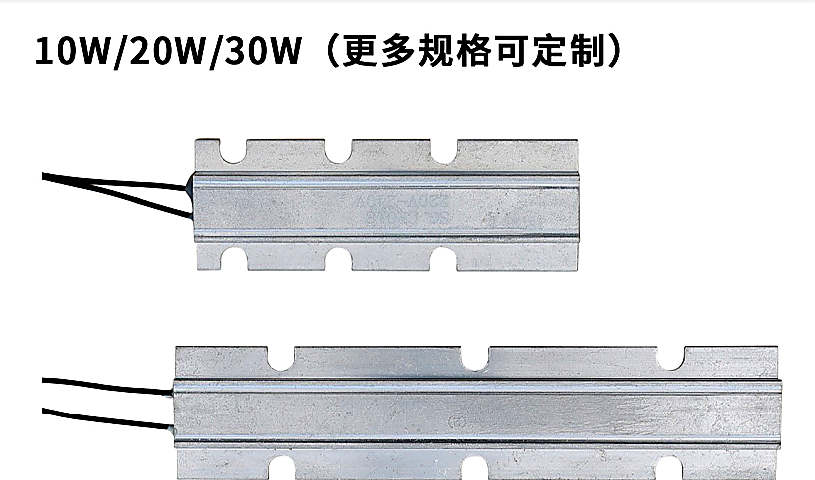

| Power | 10W; 20W (page headline also mentions 30W and custom variants) |
| Current | 10W max 1.0A; 20W max 2.5A |
| Airflow | To confirm |
| Static pressure | To confirm |
| Noise | To confirm |
| Speed | To confirm |
| IP rating | IP32 / class II double insulated |

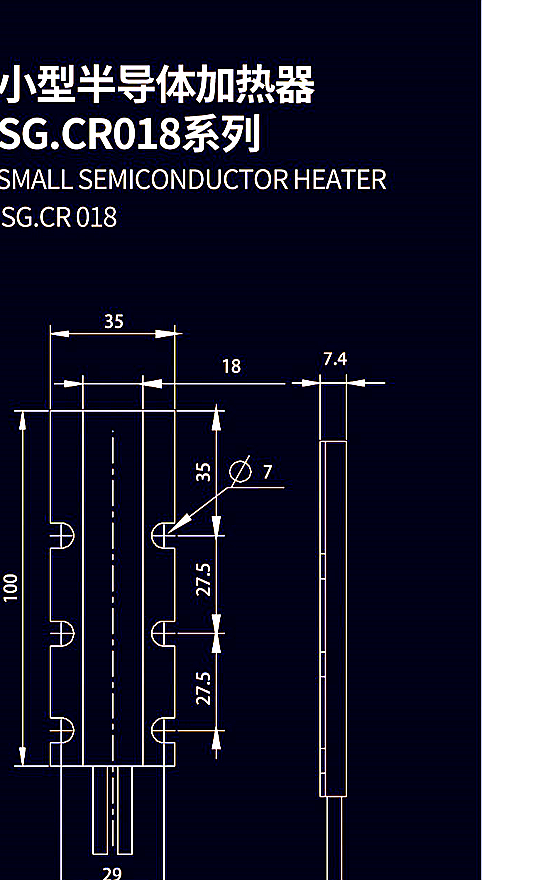

| Dimensions | 100x35x18mm body drawing; 100mm length in table |
| Cutout size | To confirm |
| Mounting | screw fixing |

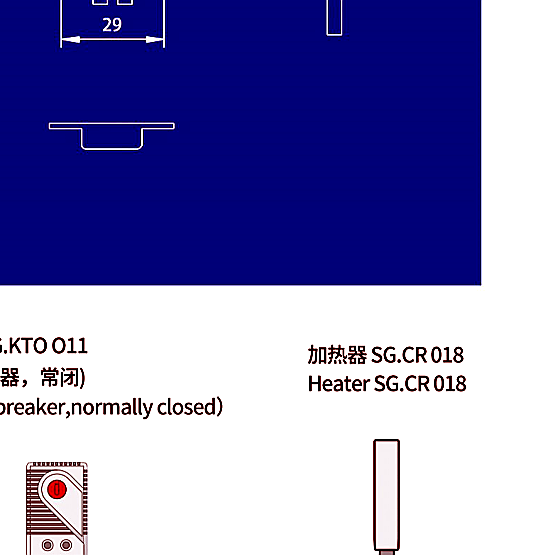

| Wiring | 2 x AWG18 multi-strand lead |
| Source | page 109 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
