Fan filter unit
SG292.230-D
Check SG292.230-D by grille size, cutout, voltage, airflow and filter maintenance needs before sending a replacement or cabinet ventilation quote request.
Match the fan filter to the cutout
Share grille size, panel cutout, voltage, airflow target, filter pad needs and cabinet photos for a clearer replacement or new-build reply.
Key specifications
Use these product details to compare models, then request the latest datasheet, drawing, certificate coverage and availability before ordering.
Product details
Request before ordering
SG292.230-D model sheet and drawing references
Model inquiry sheet for preparing the request. Ask for current documents before order.
Model sheet
| Voltage / frequency | 230V AC / 50/60Hz |
|---|---|
| Power / current | 65W available; confirm D suffix total power with supplier / 0.35A available; confirm D suffix total current with supplier |
| Airflow | 1850-2100 m3/h effective air volume available; fan pad 150 g/m2 |
| Max static pressure | 176 Pa max static pressure at 0 m3/h |
| Noise range | 54-76 dB(A) |
| Operating temperature | -10C to +55C |

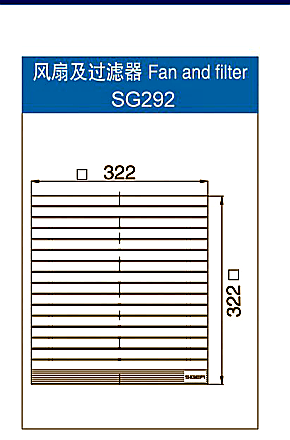

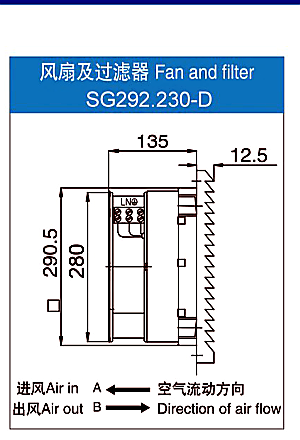

| Front size | 322x322x135mm |

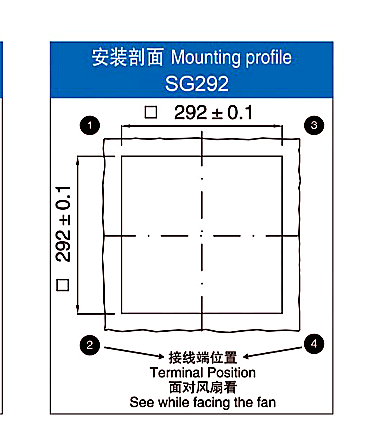

| Panel opening | 292x292mm nominal mounting opening; table shows 292 +/-0.1 |
| Material / bearing | ABS-FR; UL94 V-0 available in table / ball bearing |
| Connection | terminal board |

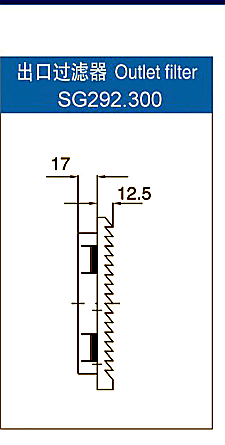

| Filter parts | SG292.000 filter cotton 285x285x10mm; outlet filter SG292.300 |
Drawing references
Use these drawing references to prepare the request; ask for the current drawing before machining or ordering.
Before quotation
- Match old label, grille size and panel opening before replacement quotation.
- Confirm the D suffix fan arrangement, total airflow and electrical values before quotation.
- Request current datasheet, dimensional drawing and IP/certificate scope before ordering.
- Use current drawing files for final panel machining and production release.
Best fit
- Use this model path when the front grille, panel opening and voltage are already known.
- For a new cabinet, compare airflow with cabinet heat load, inlet path and filter service access.
- For replacement, add old label photos and a straight-on cabinet-door photo before quote.
Send with inquiry
SG292.230-D fit details
| Front size | 322x322x135mm |
|---|---|
| Panel opening | 292x292mm nominal mounting opening; table shows 292 +/-0.1 |
| Airflow | 1850-2100 m3/h effective air volume available; fan pad 150 g/m2 |
| Protection target | IP54 available; verify model-level test document |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Filter parts | SG292.000 filter cotton 285x285x10mm; outlet filter SG292.300 |
Model details
| Product family | Fan Filter Units |
|---|---|
| Product type | fan filter |
| Voltage | 230V AC |
| Frequency | 50/60Hz |
| Power | 65W available; confirm D suffix total power with supplier |
| Current | 0.35A available; confirm D suffix total current with supplier |
| Airflow | 1850-2100 m3/h effective air volume available; fan pad 150 g/m2 |
| Static pressure | 176 Pa max static pressure at 0 m3/h |
| Noise | 54-76 dB(A) |
| IP rating | IP54 available; verify model-level test document |
| Dimensions | 322x322x135mm |
| Cutout size | 292x292mm nominal mounting opening; table shows 292 +/-0.1 |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Wiring | terminal board |
Quote details
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
SG292.230-D fan filter quotation details
Use this section to organize replacement details, quote requirements and document requests before contacting the supplier.
- Fan-filter quotation requests where the buyer needs voltage, airflow, cutout and filter details checked before price.
- Replacement inquiries where an old cabinet label or grille measurement must be matched to the current order code.
- Distributor or panel-builder requests that need datasheet, drawing and accessory mapping before sample discussion.
Replacement and RFQ inputs
These inputs help separate a fit-check, a new cabinet design, a distributor quote and a document request.
Details to ask before quote
- Confirm active/export status and exact model naming.
- Request current datasheet, cutout drawing and filter accessory mapping.
- Confirm IP or certificate coverage before using compliance wording.
Is this enough for a replacement quote?
It is enough to start the request. Add old label photos, grille size, cutout size and voltage before fit is checked.
Can suffix variants be treated as the same model?
No. Suffixes may affect dimensions, airflow, filter parts or compatibility, so the exact order code must be confirmed.
What should the first reply clarify?
The first reply should confirm model status, missing dimensions, document needs and whether this is a replacement or new cabinet design.
Related model request pages
Compare nearby models in the same product family before sending drawings, labels or document requests.
SG122.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG124.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG175.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG177.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG223.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
Documents to request before ordering
- Current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate coverage by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
