Fan filter unit
SG224.230
Check SG224.230 by grille size, cutout, voltage, airflow and filter maintenance needs before sending a replacement or cabinet ventilation quote request.
Match the fan filter to the cutout
Share grille size, panel cutout, voltage, airflow target, filter pad needs and cabinet photos for a clearer replacement or new-build reply.
Key specifications
Use these product details to compare models, then request the latest datasheet, drawing, certificate coverage and availability before ordering.
Product details
Request before ordering
SG224.230 model sheet and drawing references
Model inquiry sheet for preparing the request. Ask for current documents before order.
Model sheet
| Voltage / frequency | 230V AC / 50/60Hz |
|---|---|
| Power / current | 37W / 0.21A |
| Airflow | 240-400 m3/h effective air volume; fan pad 150 g/m2 |
| Max static pressure | 115 Pa max static pressure at 0 m3/h |
| Noise range | 54-75 dB(A) |
| Operating temperature | -10C to +55C |
| Front size | 255x255x106mm |

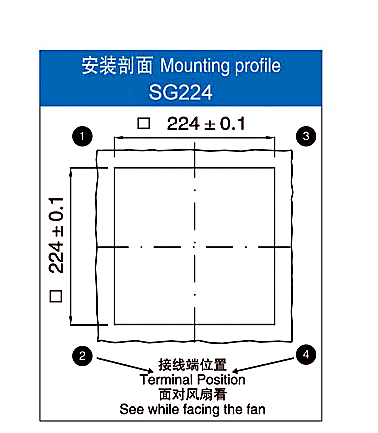

| Panel opening | 224x224mm nominal mounting opening; table shows 224 +/-0.1 |
| Material / bearing | ABS-FR; UL94 V-0 available in table / ball bearing |
| Connection | terminal board |

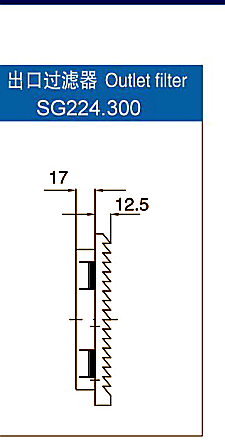

| Filter parts | SG224.000 filter cotton 220x220x10mm; outlet filter SG224.300 |

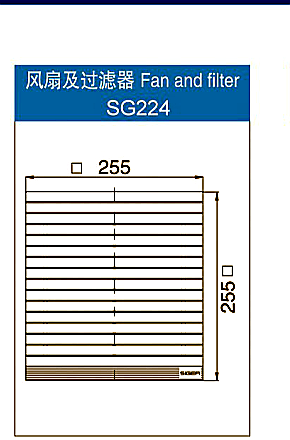

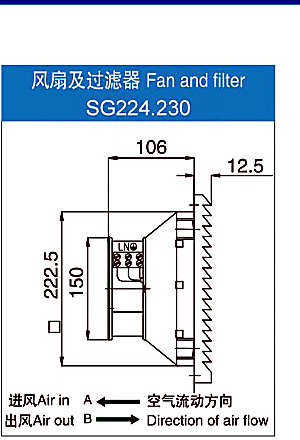

Drawing references
Use these drawing references to prepare the request; ask for the current drawing before machining or ordering.
Before quotation
- Match old label, grille size and panel opening before replacement quotation.
- If the old label shows SG224.230 (20), include the full label photo so the variant can be checked separately.
- Request current datasheet, dimensional drawing and IP/certificate scope before ordering.
- Use current drawing files for final panel machining and production release.
Best fit
- Use this model path when the front grille, panel opening and voltage are already known.
- For a new cabinet, compare airflow with cabinet heat load, inlet path and filter service access.
- For replacement, add old label photos and a straight-on cabinet-door photo before quote.
Send with inquiry
SG224.230 fit details
| Front size | 255x255x106mm |
|---|---|
| Panel opening | 224x224mm nominal mounting opening; table shows 224 +/-0.1 |
| Airflow | 240-400 m3/h effective air volume; fan pad 150 g/m2 |
| Protection target | IP54 available; verify model-level test document |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Filter parts | SG224.000 filter cotton 220x220x10mm; outlet filter SG224.300 |
Model details
| Product family | Fan Filter Units |
|---|---|
| Product type | fan filter |
| Voltage | 230V AC |
| Frequency | 50/60Hz |
| Power | 37W |
| Current | 0.21A |
| Airflow | 240-400 m3/h effective air volume; fan pad 150 g/m2 |
| Static pressure | 115 Pa max static pressure at 0 m3/h |
| Noise | 54-75 dB(A) |
| IP rating | IP54 available; verify model-level test document |
| Dimensions | 255x255x106mm |
| Cutout size | 224x224mm nominal mounting opening; table shows 224 +/-0.1 |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Wiring | terminal board |
Quote details
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
SG224.230 control cabinet fan filter request
Use this section to organize replacement details, quote requirements and document requests before contacting the supplier.
- Medium cabinet cooling inquiries where the buyer already knows the target fan-filter family but needs model confirmation.
- Replacement reviews where SG224.230 appears on an old panel or maintenance list and fit must be checked.
- OEM standardization requests that need drawings, filter accessories and market documents tied to one model.
Replacement and RFQ inputs
These inputs help separate a fit-check, a new cabinet design, a distributor quote and a document request.
Details to ask before quote
- Confirm the current SG224.230 order code and suffix rules.
- Request datasheet, cutout drawing and filter accessory mapping.
- Confirm certificate coverage before using IP or market-compliance wording.
Is SG224.230 the same as SG224.230 suffix variants?
Do not assume suffix equivalence. Ask for the exact order code and drawing before replacement or stocking.
Can this be used for dusty cabinets?
Dust level affects filter choice and airflow. Include cabinet environment and maintenance expectations in the RFQ.
What documents matter first?
Dimensional drawing, current datasheet, filter accessory list and model-level certificate coverage.
Related model request pages
Compare nearby models in the same product family before sending drawings, labels or document requests.
SG122.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG124.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG175.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG177.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
SG223.230
Fan Filter Units product page for comparing voltage, size, airflow and quotation details.
Documents to request before ordering
- Current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate coverage by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
