Fan filter unit
SG122.230
Check SG122.230 by grille size, cutout, voltage, airflow and filter maintenance needs before sending a replacement or cabinet ventilation quote request.
Match the fan filter to the cutout
Share grille size, panel cutout, voltage, airflow target, filter pad needs and cabinet photos for a clearer replacement or new-build reply.
Key specifications
Use these product details to compare models, then request the latest datasheet, drawing, certificate coverage and availability before ordering.
Product details
Request before ordering
SG122.230 model sheet and drawing references
Model inquiry sheet for preparing the request. Ask for current documents before order.
Model sheet
| Voltage / frequency | 230V AC / 50/60Hz |
|---|---|
| Power / current | 16W / 0.1A |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Max static pressure | 61 Pa max static pressure at 0 m3/h |
| Noise range | 46-75 dB(A) |
| Operating temperature | -10C to +55C |
| Front size | 150x150x58mm |
| Panel opening | 122x122mm nominal mounting opening; table shows 122 +/-0.1 |
| Material / bearing | ABS-FR; UL94 V-0 available in table / ball bearing |
| Connection | terminal board |
| Filter parts | SG122.000 filter cotton 116x116x10mm; outlet filter SG122.300 |

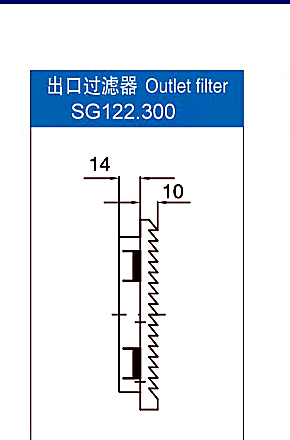

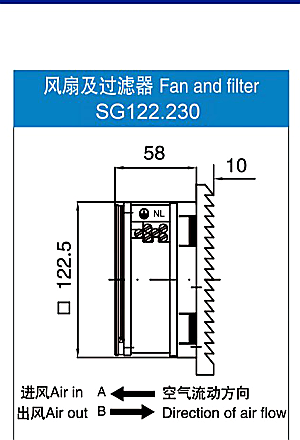

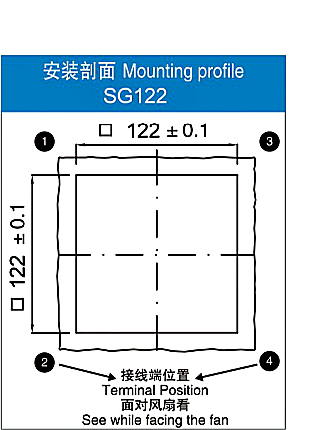

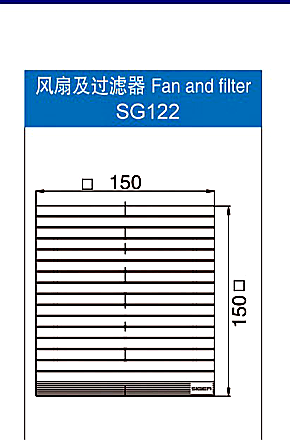

Drawing references
Use these drawing references to prepare the request; ask for the current drawing before machining or ordering.
Before quotation
- Match old label, grille size and panel opening before replacement quotation.
- Request current datasheet, dimensional drawing and IP/certificate scope before ordering.
- Use current drawing files for final panel machining and production release.
Best fit
- Use this model path when the front grille, panel opening and voltage are already known.
- For a new cabinet, compare airflow with cabinet heat load, inlet path and filter service access.
- For replacement, add old label photos and a straight-on cabinet-door photo before quote.
Send with inquiry
SG122.230 fit details
| Front size | 150x150x58mm |
|---|---|
| Panel opening | 122x122mm nominal mounting opening; table shows 122 +/-0.1 |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Protection target | IP54 available; verify model-level test document |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Filter parts | SG122.000 filter cotton 116x116x10mm; outlet filter SG122.300 |
Model details
| Product family | Fan Filter Units |
|---|---|
| Product type | fan filter |
| Voltage | 230V AC |
| Frequency | 50/60Hz |
| Power | 16W |
| Current | 0.1A |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Static pressure | 61 Pa max static pressure at 0 m3/h |
| Noise | 46-75 dB(A) |
| IP rating | IP54 available; verify model-level test document |
| Dimensions | 150x150x58mm |
| Cutout size | 122x122mm nominal mounting opening; table shows 122 +/-0.1 |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Wiring | terminal board |
Quote details
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
SG122.230 fan filter unit inquiry page
Use this section to organize replacement details, quote requirements and document requests before contacting the supplier.
- Small cabinet cooling or replacement inquiries where the buyer has an old fan-filter label and needs a current model check.
- Panel builders comparing compact fan-filter units by voltage, airflow, cutout, grille size and filter mat requirements.
- Distributor requests that need a model-level datasheet, drawing, filter accessory list and certificate coverage before quoting.
Replacement and RFQ inputs
These inputs help separate a fit-check, a new cabinet design, a distributor quote and a document request.
Details to ask before quote
- Confirm whether SG122.230 is active and export-ready for the target market.
- Request the current dimensional drawing and filter-mat reference.
- Ask for the current IP rating document and model-specific file.
Can SG122.230 be quoted from the catalog value alone?
Use the product listing to start the inquiry, then confirm active status, voltage, cutout and required documents before quotation.
What should a replacement inquiry include?
Send old label photos, front grille size, cutout size, voltage and whether an exact fit is required.
Does this page prove certification?
No. Certificates must be checked by exact model or approved series scope before public or order wording is strengthened.
