Fan filter unit
SA200.230
Check SA200.230 by grille size, cutout, voltage, airflow and filter maintenance needs before sending a replacement or cabinet ventilation quote request.
Match the fan filter to the cutout
Share grille size, panel cutout, voltage, airflow target, filter pad needs and cabinet photos for a clearer replacement or new-build reply.
Key specifications
Use these product details to compare models, then request the latest datasheet, drawing, certificate coverage and availability before ordering.
Product details
Request before ordering
SA200.230 model sheet and drawing references
Model inquiry sheet for preparing the request. Ask for current documents before order.
Model sheet
| Voltage / frequency | 230V AC / 50/60Hz |
|---|---|
| Power / current | 16W / 0.1A |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Max static pressure | 61 Pa max static pressure at 0 m3/h |
| Noise range | 46-75 dB(A) |
| Operating temperature | -10C to +55C |

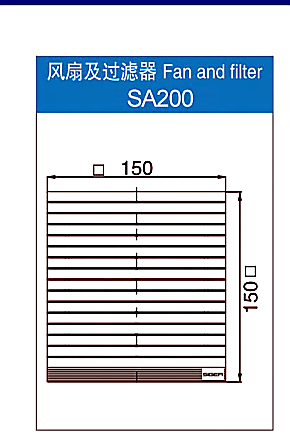

| Front size | 150x150x58mm |

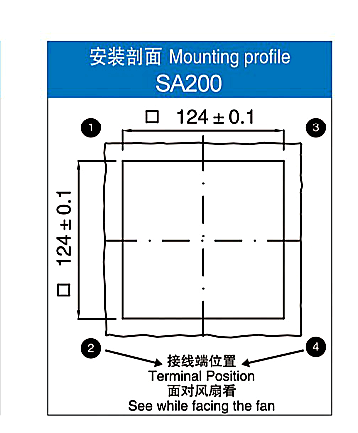

| Panel opening | 124x124mm nominal mounting opening; table shows 124 +/-0.1 |
| Material / bearing | ABS-FR; UL94 V-0 available in table / ball bearing |
| Connection | terminal board |

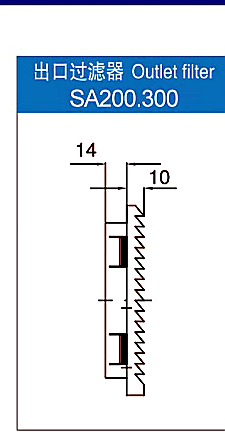

| Filter parts | SA200.230 filter cotton 116x116x10mm available; outlet filter SA200.300 |

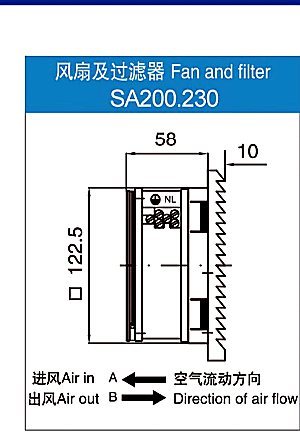

Drawing references
Use these drawing references to prepare the request; ask for the current drawing before machining or ordering.
Before quotation
- Match old label, grille size and panel opening before replacement quotation.
- Request current datasheet, dimensional drawing and IP/certificate scope before ordering.
- Use current drawing files for final panel machining and production release.
Best fit
- Use this model path when the front grille, panel opening and voltage are already known.
- For a new cabinet, compare airflow with cabinet heat load, inlet path and filter service access.
- For replacement, add old label photos and a straight-on cabinet-door photo before quote.
Send with inquiry
SA200.230 fit details
| Front size | 150x150x58mm |
|---|---|
| Panel opening | 124x124mm nominal mounting opening; table shows 124 +/-0.1 |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Protection target | IP54 available; verify model-level test document |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Filter parts | SA200.230 filter cotton 116x116x10mm available; outlet filter SA200.300 |
Model details
| Product family | Fan Filter Units |
|---|---|
| Product type | fan filter |
| Voltage | 230V AC |
| Frequency | 50/60Hz |
| Power | 16W |
| Current | 0.1A |
| Airflow | 110-220 m3/h effective air volume; fan pad 150 g/m2 |
| Static pressure | 61 Pa max static pressure at 0 m3/h |
| Noise | 46-75 dB(A) |
| IP rating | IP54 available; verify model-level test document |
| Dimensions | 150x150x58mm |
| Cutout size | 124x124mm nominal mounting opening; table shows 124 +/-0.1 |
| Mounting | panel cutout / snap mounting; horizontal installation not recommended |
| Wiring | terminal board |
Quote details
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
SA200.230 fan and filter quote request
Use this section to organize replacement details, quote requirements and document requests before contacting the supplier.
- Fan-filter inquiries where a buyer is comparing SA family options and needs a public product URL or datasheet check.
- Maintenance replacement requests with a known SA200.230 label but uncertain cabinet cutout or filter condition.
- Distributor programs that need repeatable documents and clear model naming before sample discussion.
Replacement and RFQ inputs
These inputs help separate a fit-check, a new cabinet design, a distributor quote and a document request.
Details to ask before quote
- Use the product page to identify the model, then request the current datasheet and certificate files.
- Request the current datasheet and drawing for SA200.230.
- Confirm active/export status and any suffix or accessory rules.
Where should SA200.230 details come from?
Use the product page to identify the model, then request current supplier documents before ordering.
What is the fastest quote path?
Send model, voltage, quantity, target market and old label or drawing if this is a replacement.
Can certificate wording be copied from a product page?
No. Ask for the current certificate file for the exact model and target market.
