Model inquiry page

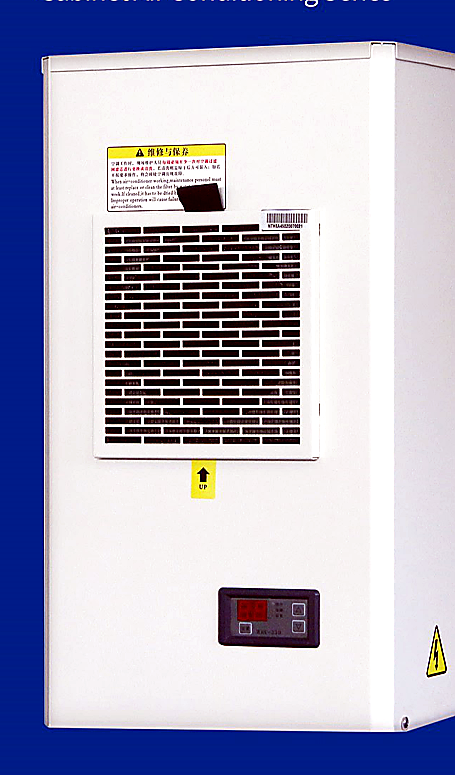

QA450
Prepare an RFQ or document request for QA450. Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | Cabinet Air Conditioners |
|---|---|
| Product type | cabinet air conditioning |
| Voltage | AC 220V/50Hz |
| Frequency | 50Hz |
| Power | 450W cooling capacity; 375W rated power |
| Current | 1.7A |
| Airflow | 120 m3/h internal circulation; 180 m3/h external circulation |
| Static pressure | To confirm |
| Noise | To confirm |
| Speed | To confirm |
| IP rating | IP34 internal circulation; IP33 external circulation |

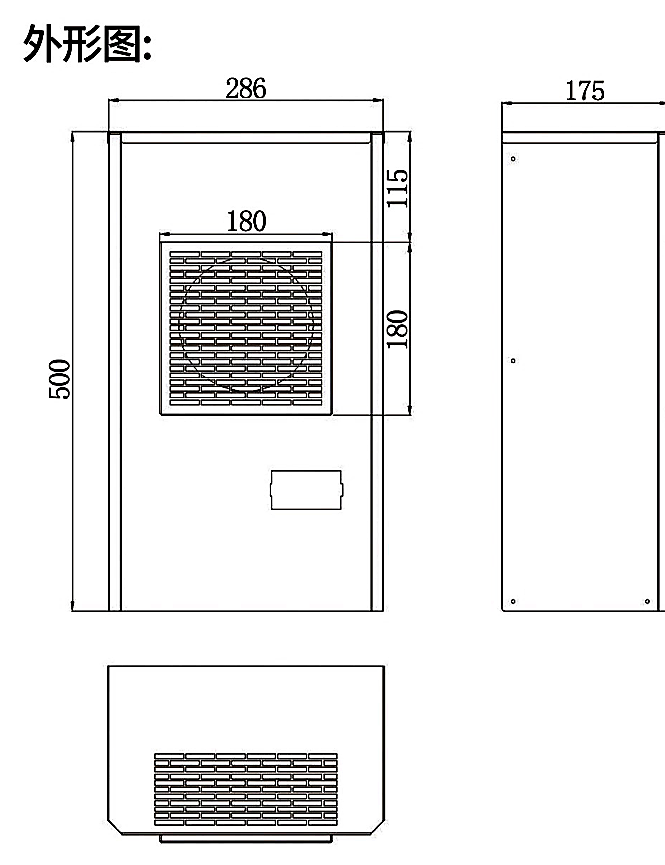

| Dimensions | 286x500x175mm |

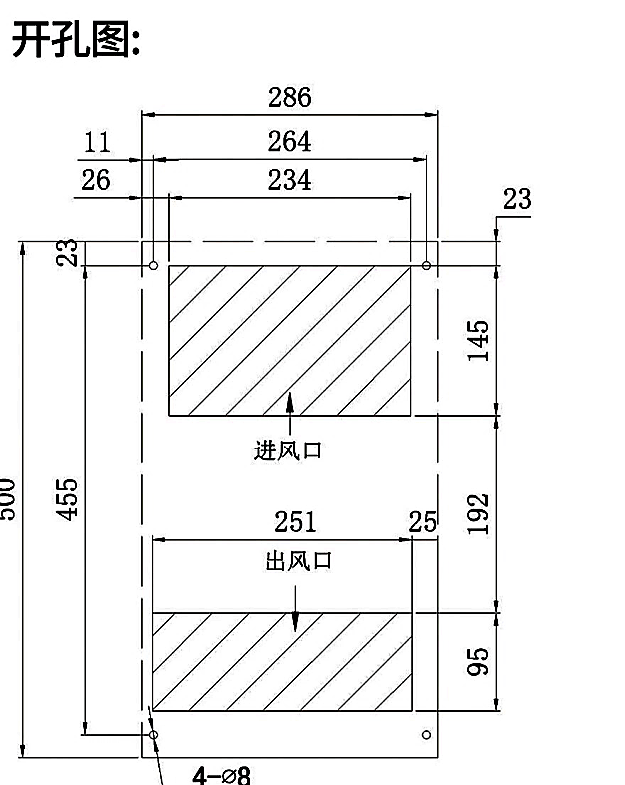

| Cutout size | cutout drawing on page 214; detailed opening dimensions require CAD/datasheet or supplier confirmation |
| Mounting | side/panel mount per cutout drawing |
| Wiring | reserved terminal |
| Source | page 214 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
