Model inquiry page
SG9225HA1 / SG9225HA2
Prepare an RFQ or document request for SG9225HA1 / SG9225HA2. Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | AC Axial Fans |
|---|---|
| Product type | axial fan |
| Voltage | 110/120V and 220/240V table variants |
| Frequency | 50/60Hz |
| Power | 11/13W |
| Current | 0.14/0.12A or 0.07/0.06A by variant |
| Airflow | 50/60 m3/h |
| Static pressure | To confirm |
| Noise | 30/36 dB(A) |
| Speed | 2400/2800 rpm |
| IP rating | To confirm |

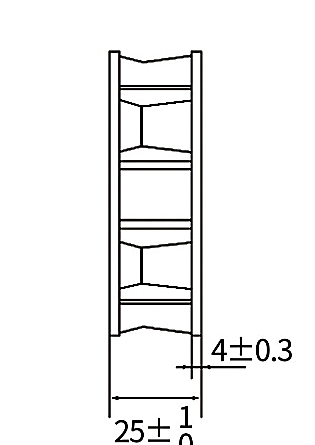

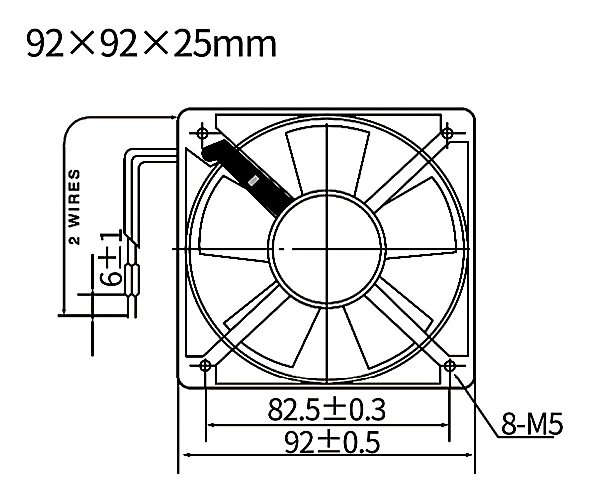

| Dimensions | 92x92x25mm |

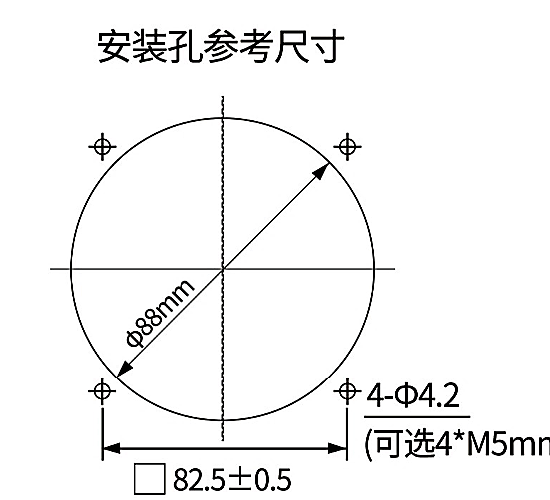

| Cutout size | Ø88mm; square 82.5±0.5mm; 4-Ø4.2 optional 4*M5mm |
| Mounting | 82.5±0.3mm hole spacing; lead wire / terminal optional |
| Wiring | L lead wire; T terminal type optional per manual note |
| Source | page 28 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
