Model inquiry page
SG250HA2(W)
Prepare an RFQ or document request for SG250HA2(W). Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | AC Axial Fans |
|---|---|
| Product type | axial fan |
| Voltage | 220V |
| Frequency | 50/60Hz |
| Power | 85W at 50Hz; 110W at 60Hz |
| Current | 0.41A at 50Hz; 0.5A at 60Hz |
| Airflow | 1350 m3/h at 50Hz; 1460 m3/h at 60Hz |

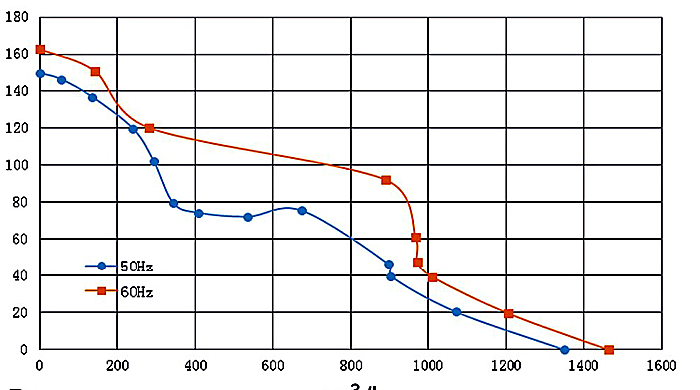

| Static pressure | P-Q curve visible on page 54; not digitized |
| Noise | 60 dB(A) at 50Hz; 63 dB(A) at 60Hz |
| Speed | 2620 rpm at 50Hz; 2875 rpm at 60Hz |
| IP rating | IP44 |

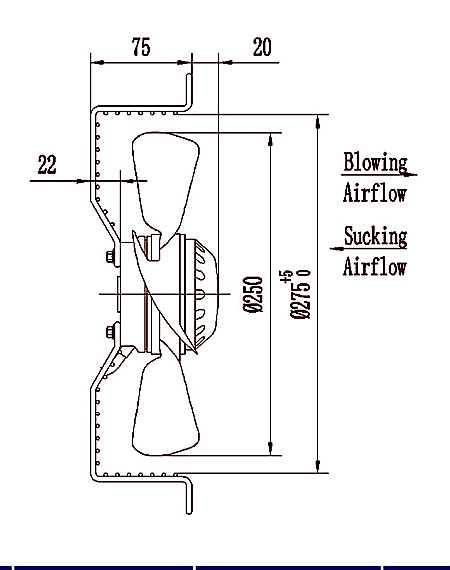

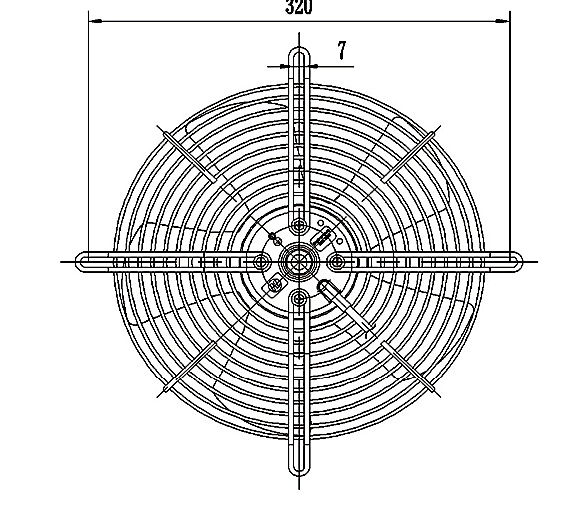

| Dimensions | 250mm round guard; front guard width 320mm visible; see ac-axial-fan-table.csv |
| Cutout size | To confirm |

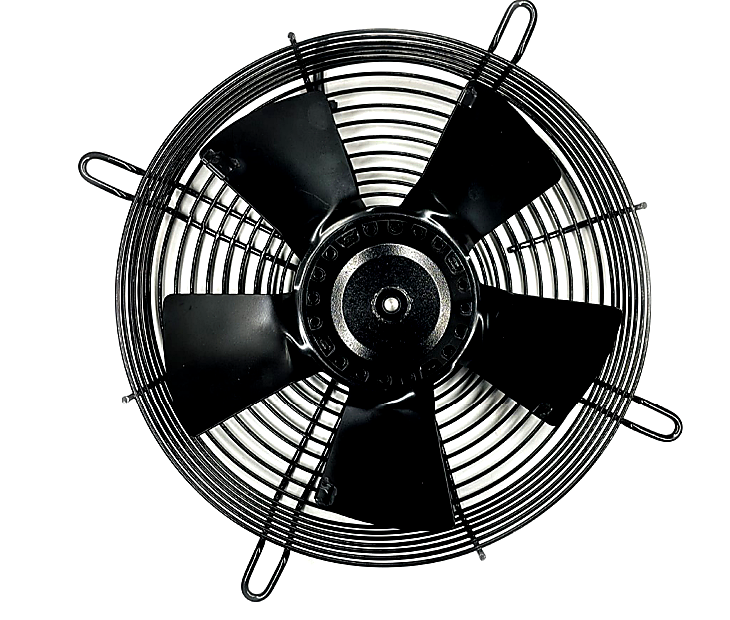

| Mounting | round guard / cabinet ventilation; drawing dimensions require confirmation |
| Wiring | TOP wired internally; CCW seen on the leads |
| Source | page 54 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
