SG15038HA1(T) / SG15038HA2(T)
Prepare an RFQ or document request for SG15038HA1(T) / SG15038HA2(T). Values shown here are catalog/table fields to check against supplier-approved model documents before final datasheet or certification wording is used.
This is an inquiry-preparation page, not a final approved datasheet. Confirm model-level documents before ordering.
Use this model page to start a quotation
Collect the cabinet condition, voltage, quantity, drawings and document needs. We will confirm active status, datasheet scope and market documents before treating this as a final orderable specification.
Current extracted fields
| Product family | AC Axial Fans |
|---|---|
| Product type | axial fan |
| Voltage | 110/120V and 220/240V table variants |
| Frequency | 50/60Hz |
| Power | 36/38W or 22/30W by variant |
| Current | 0.24A or 0.12A by variant |
| Airflow | 280/320 m3/h |
| Static pressure | To confirm |
| Noise | 52/58 dB(A) |
| Speed | 2650/3000 rpm |
| IP rating | To confirm |

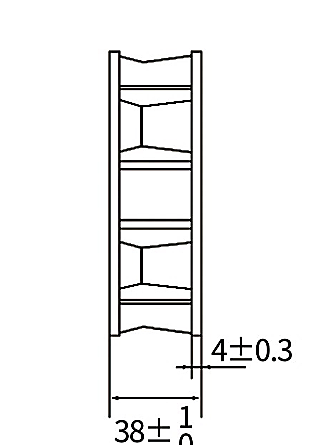

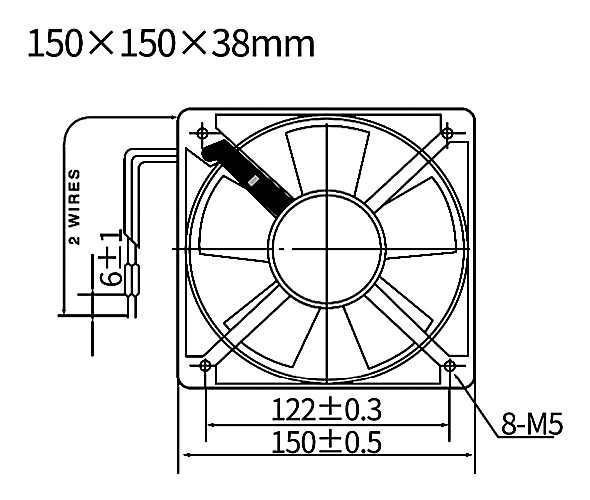

| Dimensions | 150x150x38mm |

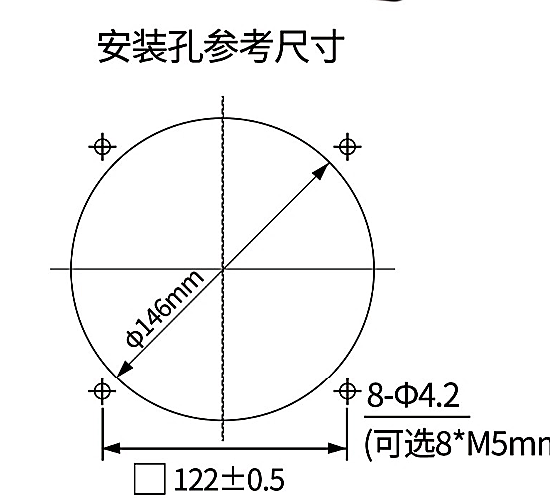

| Cutout size | Ø146mm; square 122±0.5mm; 8-Ø4.2 optional 8*M5mm |
| Mounting | 122±0.3mm hole spacing; lead wire / terminal optional |
| Wiring | L lead wire; T terminal type optional per manual note |
| Source | page 34 |
RFQ checklist
confirm active/export statusrequest current datasheet and drawingconfirm certificate scope by exact modelshare quantity, target market and applicationinclude old model photo and replacement constraints
If this is a replacement inquiry, include old label photos, front grille size, cutout size, voltage and required fit tolerance.
Documents to confirm before ordering
- Supplier-approved current model name and export status.
- Datasheet, dimension drawing, wiring or cutout drawing where relevant.
- Certificate scope by model or approved series coverage.
- MOQ, sample availability, lead time and private-label limits.
